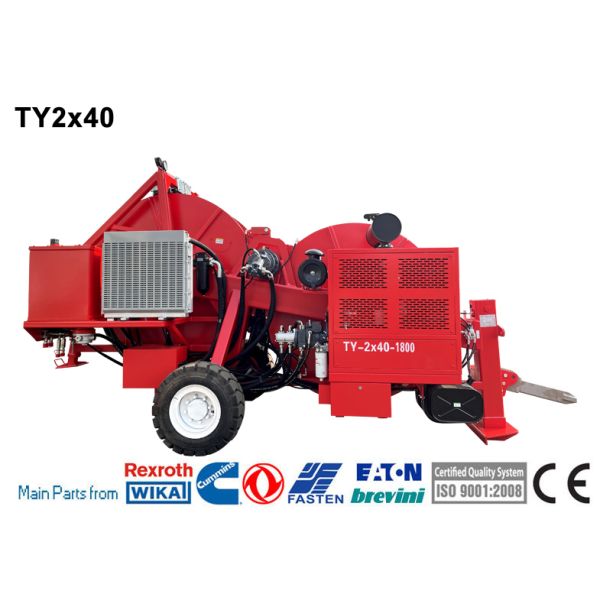

TY2x40-1800 Transmission Line Stringing Equipment Hydraulic Cable Tensioner
TY2x40-1800 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
| Max intermittent tension: 2x45kN |
| Max continuous tension: 2x40kN |
| Speed at max tension: 2.5km/h |
| Max speed: 5km/h |
| Pull at max speed: 2x20kN |
| Max reverse pulling force: 2x35kN |
| Max reverse pulling speed: 5km/h |
Characteristics
Bull-wheel diameter: 1800mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 7790kg
Overall dimension (length*width*height): 4600×2250×2700mm
Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth / Italy Bonfiglioli
Main hydraulic valves: USA Sun / Italy ATOS
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Hydraulic front stabilizer
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Additional Devices
Lighting system for the trailer
2 hydraulic rope/conductor clamp(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 15 km/h
Digital speed and meter counter
