Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

  • 1
  • 2

Brand Name : HANYU

Model Number : TY2x40-1800

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD57,500-61,000/set

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Max intermittent tension : 2x45kN

Max continuous tension : 2x40kN

Engine : Cummins

Groove number : 2x5

Bull-wheel diameter : 1800mm

Type : Stringing Equipment Hydraulic Cable Tensioner

Contact Now

Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner

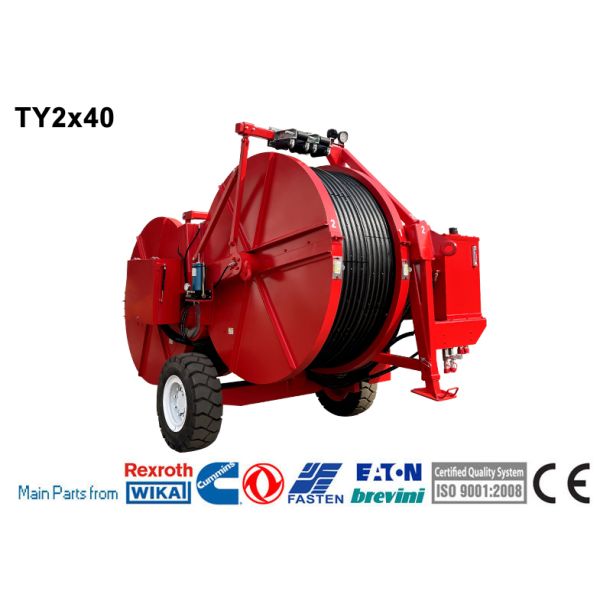

TY2x40-1800 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics
  • Bull-wheel diameter: 1800mm
  • Max conductor diameter: 40mm
  • Groove number: 2x5
  • Total weight: 7790kg
  • Overall dimension (length*width*height): 4600×2250×2700mm

Performance
  • Max intermittent tension: 2x45kN
  • Max continuous tension: 2x40kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 2x20kN
  • Max reverse pulling force: 2x35kN
  • Max reverse pulling speed: 5km/h
Main configuration
  • Engine: Cummins
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main motor:German Rexroth/French Leduc
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Main hydraulic valves: USA Sun / Italy ATOS
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V

Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Configuration
  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Digital speed and meter counter

Max Continuous Tension 2x40kN Stringing Equipment Cable Hydraulic Tensioner
